BUW6-300-SNE-D22

Name: BUW6-300-SNE-D22
Brand: STASTO
SKU: BUW6-300-SNE-D22
Price: 999999.0 RON
Availability: InStock

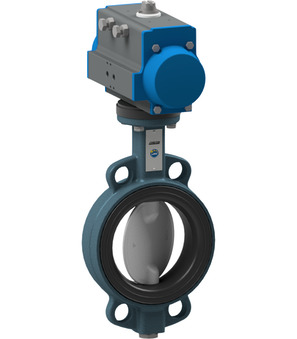

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body AISI316; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -35...+130°C; Pressure range 0...10bar; DN 300mm; Length 78mm; Disc Aluminium-bronze; Actuator PAD160

Intrastat No.: 84818085
Country of origin: Italy
Weight: 54.35 Kg
Short Itemnumber: BUW6300SNED22

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body AISI316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -35...+130°C; pressure range 0...10bar; DN 300mm; length 78mm; disc aluminium-bronze; actuator PAD160

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-300-SNE-B x 1.0

BUW6-300-SNE-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body AISI316; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -35...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Disc Aluminium-bronze

Add to Cart

PAD160 x 1.0

Pneumatic actuator PAD160

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 630Nm

Add to Cart

APKTGB0052 x 1.0
