BUW6-150-DSV-D22-A

Name: BUW6-150-DSV-D22-A
Brand: STASTO
SKU: BUW6-150-DSV-D22-A
Price: 6412.7 RON
Availability: InStock

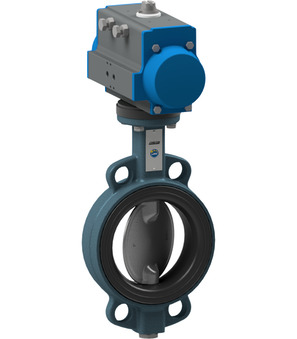

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Weight: 17.72 Kg
Short Itemnumber: BUW6150DSVD22A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 150mm; length 56mm; actuator PAD115
