BUW6-150-DSV-D22

Name: BUW6-150-DSV-D22
Brand: STASTO
SKU: BUW6-150-DSV-D22
Price: 6412.7 RON
Availability: InStock

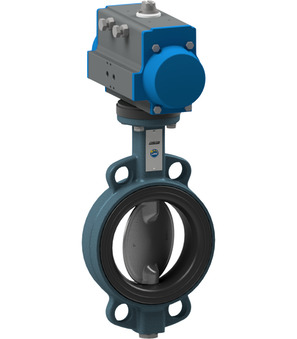

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Weight: 17.72 Kg
Short Itemnumber: BUW6150DSVD22

6.412,70 lei 6412.7 RON 6.412,70 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW6-150-DSV-B x 1.0

Butterfly valve with bare shaft BUW6-150-DSV-B

Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm

Add to Cart

PAD115 x 1.0

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart

MFFALFUAL09733 x 1.0
