BUW6-150-DSV-CK2

BUW6-150-DSV-CK2

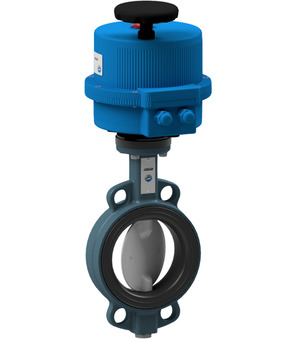

Butterfly valve With Electric control actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Operating time 27s; Voltage 24VAC/DC; With integrated positioner 4-20mA/0-10V; Position feedback 4-20 mA

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.64 Kg
Short Itemnumber: BUW6150DSVCK2
https://www.stasto.ro/web/image/product.template/233197/image_1920?unique=24fee4a

butterfly valve with electric control actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...10bar; DN 150mm; length 56mm; operating time 27s; voltage 24VAC/DC; with integrated positioner 4-20mA/0-10V; position feedback 4-20 mA

8.913,30 lei 8913.3 RON 8.913,30 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-150-DSV-B x 1.0
    Butterfly valve with bare shaft BUW6-150-DSV-B
    Butterfly valve with bare shaft Series BUW6-DSV-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm
    Add to Cart
    Electrical actuator VB190-L-P0S
    VB190-L-P0S x 1.0
    Electrical actuator VB190-L-P0S
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
