BUW6-080-DSE-X-A

BUW6-080-DSE-X-A

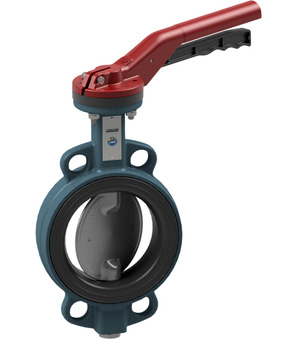

Butterfly valve with hand lever Series BUW6-DSE-X; ATEX II 2 G/D Ex h X; Hand lever Stainless steel; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 5.8 Kg
Short Itemnumber: BUW6080DSEXA
https://www.stasto.ro/web/image/product.template/239132/image_1920?unique=24fee4a

Butterfly valve with hand lever Series BUW6-DSE-X; ATEX II 2 G/D Ex h X; Hand lever Stainless steel; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc AISI 316; Shaft AISI 430; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm

1.712,60 lei 1712.6 RON 1.712,60 lei

Not Available For Sale

  • DN
  • Length
  • Design
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 50 mm
Length 43 mm
design
Design ATEX
pressure
Pressure range 0...16 bar
No spare parts are available for this product.
