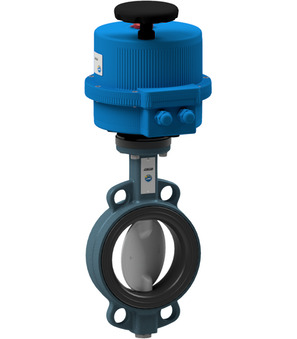

BUW6-050-DSD-0K2
Butterfly valve with electrical actuator; Wafer type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Operating time 9s; Voltage 100-240VAC; Accumulator for safety position NC
Country of origin: Italy
Weight: 6.14 Kg
Short Itemnumber: BUW6050DSD0K2
butterfly valve with electrical actuator; wafer type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+60°C; pressure range 0...10bar; DN 50mm; length 43mm; operating time 9s; voltage 100-240VAC; accumulator for safety position NC
