BUW4-080-DSTS-S21

Name: BUW4-080-DSTS-S21
Brand: STASTO
SKU: BUW4-080-DSTS-S21
Price: 6713.6 RON
Availability: InStock

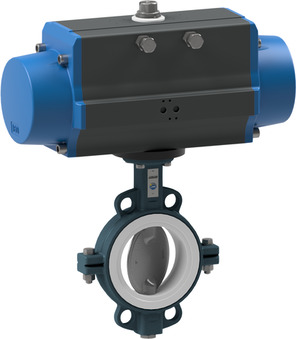

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc and shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Actuator PAS1405

Intrastat No.: 84818085
Country of origin: Italy
Weight: 16.0 Kg
Short Itemnumber: BUW4080DSTSS21

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAS1405

6.713,60 lei 6713.6 RON 6.713,60 lei

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BUW4080DSTSS21.stp

Download

BUW4-080-DSTS-B x 1.0

BUW4-080-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart
