BULG-125-DSV-S22-A

Name: BULG-125-DSV-S22-A
Brand: STASTO
SKU: BULG-125-DSV-S22-A
Price: 6536.7 RON
Availability: InStock

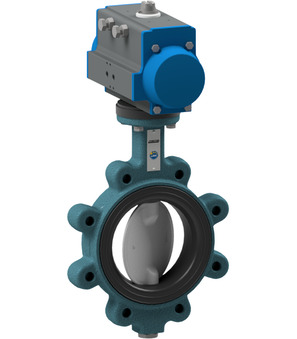

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Flange PN10/16; Actuator PAS1255; ATEX Ex II 2GD c TX

Intrastat No.: 84818085
Country of origin: Italy
Weight: 23.75 Kg
Short Itemnumber: BULG125DSVS22A

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 125mm; length 56mm; flange PN10/16; actuator PAS1255; ATEX Ex II 2GD c TX

6.536,70 lei 6536.7 RON 6.536,70 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BULG-125-DSV-B-A x 1.0

Butterfly valve with bare shaft BULG-125-DSV-B-A

Butterfly valve with bare shaft Series BULG-DSV-B-A, BULC-DSV-B-A, BULY-DSV-B-A; ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 125mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure 10/16bar

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
