BUW4-080-CZTS-L

BUW4-080-CZTS-L

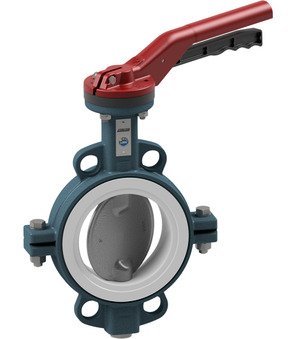

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc Stainless steel AISI 630 PTFE-coated; Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.75 Kg
Short Itemnumber: BUW4080CZTSL
https://www.stasto.ro/web/image/product.template/149330/image_1920?unique=24fee4a

butterfly valve with hand lever; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc stainless steel AISI 630 PTFE-coated; shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm

7.295,00 lei 7295.0 RON 7.295,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW4-080-CZTS-B x 1.0
    BUW4-080-CZTS-B
    Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4542; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 80mm; Length 46mm
    Add to Cart
    HLBU-040100-A
    HLBU-040100-A x 1.0
    HLBU-040100-A
    Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
