Butterfly valve with manual gear box Series BUW-CSR-G-A Store

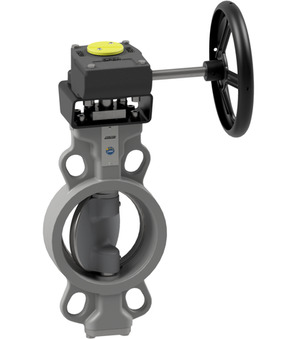

Butterfly valve with manual gear box BUW3A-500-CSRS-G-A

Name: Butterfly valve with manual gear box BUW3A-500-CSRS-G-A
Brand: STASTO
SKU: BUW3A-500-CSRS-G-A
Price: 107595.2 RON
Availability: InStock

Butterfly valve with manual gear box Series BUW-CSR-G-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 500mm; Length 127mm; Nominal flange pressure PN16

Intrastat No.: 84818085
Country of origin: Italy
Weight: 129.052 Kg
Short Itemnumber: BUW3A500CSRSGA

butterfly valve with manual gear box series BUW-CSR-G-A; ATEX II 2 G/D Ex h X; wafer type; double eccentric; length according to EN558−1R20; body steel epoxy coated; disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 500mm; length 127mm; nominal flange pressure PN16

107.595,20 lei 107595.2 RON 107.595,20 lei

DN
- 500 mm
Length
- 127 mm
Flange
- PN16
Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	500 mm
Length	127 mm
Flange	PN16
design
Design	ATEX

BUW3A-500-CSRS-B-A x 1.0

Butterfly valve with bare shaft BUW3A-500-CSRS-B-A

Butterfly valve with bare shaft Series BUW-CSR-B-A; ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 500mm; Length 127mm; Nominal flange pressure PN16

Add to Cart
