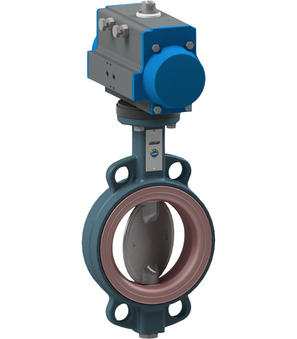

Butterfly valve with pneumatic actuator BUW2-300-DSC-D32

Butterfly valve with pneumatic actuator BUW2-300-DSC-D32

Butterfly valve with pneumatic actuator Series BUW2-DSC-D3; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 300mm; Length 78mm; Actuator PAD125

Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 43.34 Kg
Short Itemnumber: BUW2300DSCD32
https://www.stasto.ro/web/image/product.template/88182/image_1920?unique=fcc32fd

Butterfly valve with pneumatic actuator Series BUW2-DSC-D3; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 300mm; Length 78mm; Actuator PAD125

9.607,40 lei 9607.4 RON 9.607,40 lei

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6 bar
DN 300 mm
Length 78 mm
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...6 bar
DN 300 mm
Length 78 mm
Brand STASTO

BUW2-300-DSC-D32

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BUW2-300-DSC-B x 1.0 Pcs
Butterfly valve with bare shaft BUW2-300-DSC-B
Butterfly valve with bare shaft Series BUW2-DSC-B; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 300mm; Length 78mm
Pneumatic actuator PAD125
PAD125 x 1.0 Pcs
Pneumatic actuator PAD125
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm
APKTGB0011 x 1.0 Pcs
APKTGB0011
Mounting bracket For butterfly valve; DN250-300-F10/F07
