BUW2-250-DSC-D32-EB0X01

BUW2-250-DSC-D32-EB0X01

BUW2-250-DSC-D32
butterfly valve with pneumatic actuator series BUW2-DSC-D3; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Absperrklappe mit Druckluftdrehantrieb Serie BUW2-DSC-D3
Intrastat No.: 84818085
Country of origin: Italy Made in Europe
Weight: 31.808 Kg
Short Itemnumber: BUW2250DSCD32EB0X01
https://www.stasto.ro/web/image/product.template/220531/image_1920?unique=4bf1581

BUW2-250-DSC-D32
butterfly valve with pneumatic actuator series BUW2-DSC-D3; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

8.309,40 lei 8309.4 RON 8.309,40 lei

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6 bar
DN 250 mm
Length 68 mm
Switch type Crouzet 831613
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...6 bar
DN 250 mm
Length 68 mm
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic
Brand STASTO

BUW2-250-DSC-D32-EB0X01

Documents

9 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

2

Assembly and Operating Instructions

2

Declarations of Conformity

3

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

2
English
ZIP

Data Sheets

2

Assembly and Operating Instructions

2

Declarations of Conformity

3

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

2
French / Français
ZIP

Data Sheets

2

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Assembly and Operating Instructions

1

Declarations of Conformity

3

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

2

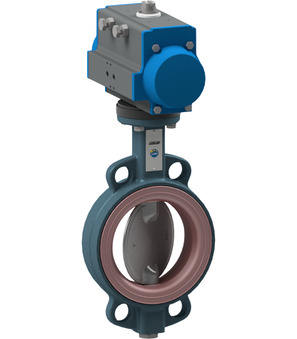

Butterfly valve with pneumatic actuator BUW2-250-DSC-D32
BUW2-250-DSC-D32 x 1.0 Pcs
Butterfly valve with pneumatic actuator BUW2-250-DSC-D32
Butterfly valve with pneumatic actuator Series BUW2-DSC-D3; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Actuator PAD115
EB0X01
EB0X01 x 1.0 Pcs
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
