BUW2-200-DSE-L

BUW2-200-DSE-L

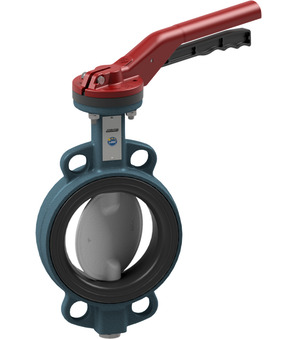

Butterfly valve with hand lever Series BUW2-DSE-L; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 15.0 Kg
Short Itemnumber: BUW2200DSEL
https://www.stasto.ro/web/image/product.template/90200/image_1920?unique=140292a

Butterfly valve with hand lever Series BUW2-DSE-L; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 200mm; Length 60mm

2.807,50 lei 2807.5 RON 2.807,50 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...6bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0...6bar
Brand STASTO

BUW2-200-DSE-L

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BUW2-200-DSE-B x 1.0 Pcs
Butterfly valve with bare shaft BUW2-200-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Flange PN10/16/ANSI150
HLBU-200-A
HLBU-200-A x 1.0 Pcs
HLBU-200-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULA And BULY; DN 200mm
