BUW2-200-APE-D32-A

Name: BUW2-200-APE-D32-A
Brand: STASTO
SKU: BUW2-200-APE-D32-A
Price: 999999.0 RON
Availability: InStock

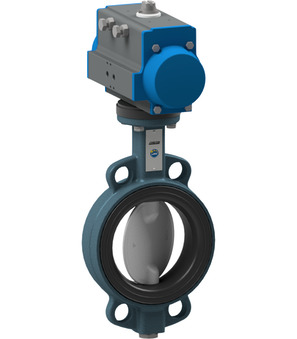

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Aluminum Epoxy coated; Disc Zinc plated ductile iron EN-GJS-400-15; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 200mm; Length 60mm; Actuator PAD085; ATEX zone 1 and 21

Intrastat No.: 84818085
Country of origin: Italy
Weight: 12.19 Kg
Short Itemnumber: BUW2200APED32A

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body aluminum epoxy coated; disc zinc plated ductile iron EN-GJS-400-15; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...6bar; DN 200mm; length 60mm; actuator PAD085; ATEX zone 1 and 21

999.999,00 lei 999999.0 RON 999.999,00 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW2-200-APE-B-A x 1.0

BUW2-200-APE-B-A

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Aluminum; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Disc Zinc plated ductile iron EN-GJS-400-15; Pressure range 0…6bar; Flange PN10/16/ANSI150; ATEX zone 1 and 21

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

APKTGB0056 x 1.0
