BUW2-150-DSX-D32

Name: BUW2-150-DSX-D32
Brand: STASTO
SKU: BUW2-150-DSX-D32
Price: 999999.0 RON
Availability: InStock

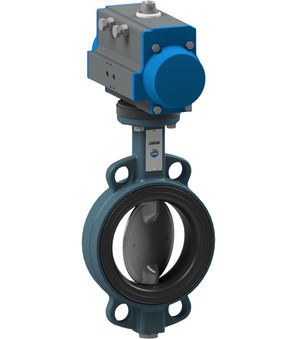

Butterfly valve with pneumatic actuator Series BUW2; Wafer type; Length According to EN558-1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+150°C; DN 150mm; Length 56mm; Pressure range 0-6bar; Actuator PAD085

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.14 Kg
Short Itemnumber: BUW2150DSXD32

butterfly valve with pneumatic actuator series BUW2; wafer type; length according to EN558-1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+150°C; DN 150mm; length 56mm; pressure range 0-6bar; actuator PAD085

999.999,00 lei 999999.0 RON 999.999,00 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUW2-150-DSX-B x 1.0

BUW2-150-DSX-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+150°C; Pressure range 0...6bar; DN 150mm; Length 56mm

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

MFFALFUAL09733 x 1.0
