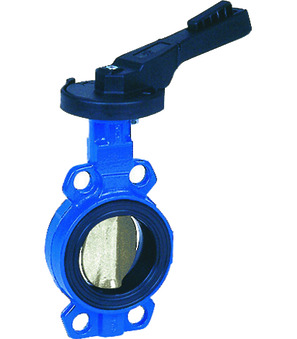

BUS5-080-DSED-L

BUS5-080-DSED-L

Butterfly valve with bare shaft; Wafer type; With DVGW certificate For water; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6/10/16/ANSI150; Medium temperature -10...+120°C; Pressure range 0...16bar; DN 80mm; Length 46mm

Intrastat No.: 84818085
Country of origin: France
Weight: 9.75 Kg
Short Itemnumber: BUS5080DSEDL
https://www.stasto.ro/web/image/product.template/163189/image_1920?unique=df5c10e

butterfly valve with bare shaft; wafer type; with DVGW certificate for water; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -10...+120°C; pressure range 0...16bar; DN 80mm; length 46mm

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    No spare parts are available for this product.
