BULY-250-CSV-G-3C01

BULY-250-CSV-G-3C01

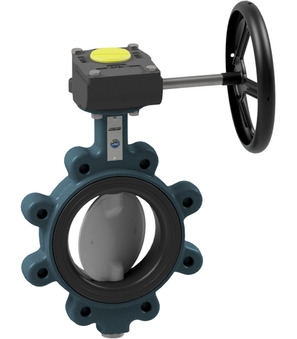

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 250mm; Length 68mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. padlock; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness;

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.778 Kg
Short Itemnumber: BULY250CSVG3C01
https://www.stasto.ro/web/image/product.template/176175/image_1920?unique=baeb489

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body steel A216-WCB; epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 250mm; length 68mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC; incl. padlock; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness;

15.123,50 lei 15123.5 RON 15.123,50 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0…16bar
Brand STASTO
Pressure range 0…16bar
Brand STASTO
BULY-250-CSV-B-3C01 x 1.0 Pcs
BULY-250-CSV-B-3C01
Butterfly valve with bare shaft Series BULY-CSV-B-3C01; Lug type; Length According to EN558−1 R20; Body Steel 1.0619 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 250mm; Length 68mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
GB02-10/22-04
GB02-10/22-04 x 1.0 Pcs
GB02-10/22-04
gear box; body cast iron; protection class IP67; torque 1000Nm; flange ISO5211 F10; female square 22mm; Padlockflange
