BULY-150-DSE-G

BULY-150-DSE-G

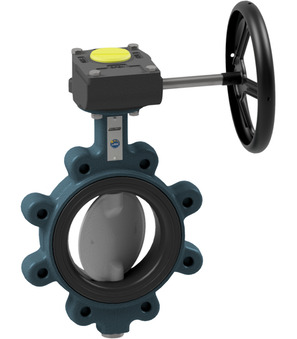

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0-16bar; Flange ANSI150

Intrastat No.: 84818085
Country of origin: Italy
Weight: 14.214 Kg
Short Itemnumber: BULY150DSEG
https://www.stasto.ro/web/image/product.template/152813/image_1920?unique=24fee4a

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 150mm; length 56mm; pressure range 0-16bar; flange ANSI150

2.861,10 lei 2861.1 RON 2.861,10 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULY-150-DSE-B x 1.0
    Butterfly valve with bare shaft BULY-150-DSE-B
    Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150
    Add to Cart
    GB02-07/14-01
    GB02-07/14-01 x 1.0
    GB02-07/14-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 14mm
