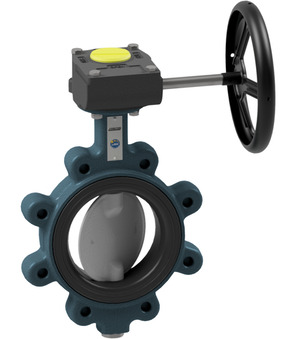

BULG-100-DSD-G-3C

Butterfly valve with bare shaft Series BULG-B-3C-DVGW, BULC-B-3C-DVGW; Lug type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 11mm

Hexagon head screw Series SW002-I; 1.4301; According to ISO4017; Thread M8X20

Spring washer Series SWA004-I; 1.4301; According to DIN127; Thread M8
