Butterfly valve with hand lever Series BULG-L, BULC-L Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Butterfly valves
  5. Butterfly valve with hand lever Series BULG-L, BULC-L
  6. BULG-080-DSX-L

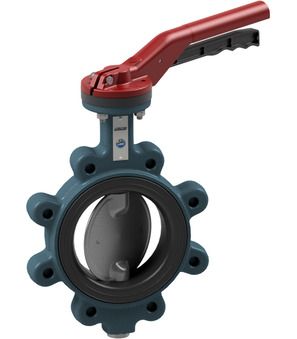

Butterfly valve with hand lever BULG-080-DSX-L

Butterfly valve with hand lever BULG-080-DSX-L

butterfly valve with hand lever series BULG-L, BULC-L; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 80mm; length 46mm; pressure range 0-16bar; flange PN10/16

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULG080DSXL
https://www.stasto.ro/web/image/product.template/177560/image_1920?unique=b9bbba7

butterfly valve with hand lever series BULG-L, BULC-L; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 80mm; length 46mm; pressure range 0-16bar; flange PN10/16

1.281,60 lei 1281.6 RON 1.281,60 lei

Not Available For Sale

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 50 mm
Length 43 mm
Flange PN10/16
pressure
Pressure range 0...16 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Butterfly valve with hand lever Series BULG-L, BULC-L_EN.pdf
Download
Assembly and Operating Instructions
1
Assembly instruction_Butterfly valve with hand lever Series BULG-L, BULC-L_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s ruční pákou série BULG-L, BULC-L_CS.pdf
Download
Montážní a provozní návody
1
Montážní předpis_uzavírací klapka s ruční pákou série BULG-L, BULC-L_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med håndgreb Serie BULG-L, BULC-L_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Handhebel Serie BULG-L, BULC-L_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montageanleitung_Absperrklappe mit Handhebel Serie BULG-L, BULC-L_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Βαλβίδα πεταλούδας απομόνωσης με χειρομοχλό Σειρά BULG-L, BULC-L_EL_GR.pdf
Download

ZIP
Assembly and Operating Instructions
1
Ficha técnica_Válvula de mariposa con palanca manual Serie BULG-L, BULC-L_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili käsivivulla Sarja BULG-L, BULC-L_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec levier manuel Série BULG-L, BULC-L_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Leptirasti zaporni ventil s ručicom Serija BULG-L, BULC-L_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pillangószelep kézikarral sorozat BULG-L, BULC-L_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Üzembehelyezési útmutató_pillangószelep kézikarral sorozat BULG-L, BULC-L_HU.pdf
Download

ZIP
Assembly and Operating Instructions
1
Scheda tecnica_Serranda di intercettazione con leva manuale Serie BULG-L, BULC-L_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjeldventil med håndspak Serie BULG-L, BULC-L_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met handhendel Serie BULG-L, BULC-L_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z dźwignią ręczną Seria BULG-L, BULC-L_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu_przepustnica z dźwignią ręczną Seria BULG-L, BULC-L_PL.pdf
Download

ZIP
Assembly and Operating Instructions
1
Fișă de date_Supapă fluture cu pârghie manuală serie BULG-L, BULC-L_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z ročico serija BULG-L, BULC-L_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo_Zaporna loputa z ročico serija BULG-L, BULC-L_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa ručnom polugom serije BULG-L, BULC-L_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu_leptir ventil sa ručnom polugom serije BULG-L, BULC-L_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med handspak Serie BULG-L, BULC-L_SV.pdf
Download
BULG-080-DSX-B x 1.0
Butterfly valve with bare shaft BULG-080-DSX-B
butterfly valve with bare shaft series BUL-DSX-B, lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-peroxide cross-linked; medium temperature -10...+150°C; DN 80mm; length 46mm; pressure range 0…16bar; nominal flange pressure PN10/16
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
