BULG-080-DSN-G-3CA

Name: BULG-080-DSN-G-3CA
Brand: STASTO
SKU: BULG-080-DSN-G-3CA
Price: 2022.1 RON
Availability: InStock

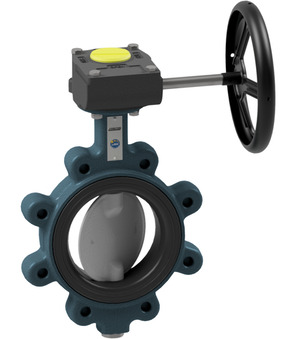

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 80mm; Length 46mm; ; ATEX - Ex II 2GD c TX; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Netherlands
Weight: 8.824 Kg
Short Itemnumber: BULG080DSNG3CA

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16; medium temperature -10...+100°C; pressure range 0...16bar; DN 80mm; length 46mm; ; ATEX - Ex II 2GD c TX; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

2.022,10 lei 2022.1 RON 2.022,10 lei

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BULG-080-DSN-B-3C x 1.0

Butterfly valve with bare shaft BULG-080-DSN-B-3C

Butterfly valve with bare shaft Series BUL1-DSN-B, BULA-DSN-B, BULG-DSN-B, BULC-DSN-B, BULY-DSN-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
