BULC-450-DPD-G

BULC-450-DPD-G

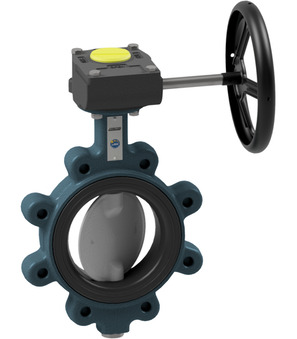

Butterfly valve with manual gear box; Lug type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner NBR ; Nominal flange pressure PN10; Medium temperature -10...+60°C; Pressure range 0...10bar; DN 450mm; Length 114mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 184.044 Kg
Short Itemnumber: BULC450DPDG
https://www.stasto.ro/web/image/product.template/155102/image_1920?unique=d9024cc

butterfly valve with manual gear box; lug type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner NBR ; nominal flange pressure PN10; medium temperature -10...+60°C; pressure range 0...10bar; DN 450mm; length 114mm

20.858,50 lei 20858.5 RON 20.858,50 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULC-450-DPD-B x 1.0
    BULC-450-DPD-B
    Butterfly valve with bare shaft; Lug type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Zinc plated ductile iron EN-GJS-400-15; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 450mm; Length 114mm; Pressure range 0…10bar; Flange PN10
    Add to Cart
    GB02-14/4512-01
    GB02-14/4512-01 x 1.0
    GB02-14/4512-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 2000Nm; Flange ISO5211 F14; Diameter/Key 45/12mm
