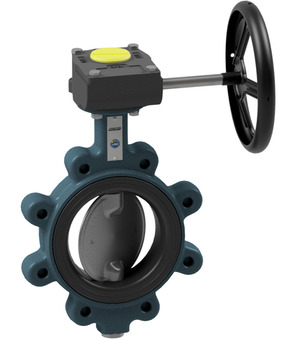

Butterfly valve with manual gear box BULC-350-DSN-G-3C

Butterfly valve with manual gear box BULC-350-DSN-G-3C

butterfly valve with manual gear box series BULC-G; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 350mm; length 78mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 11.062 Kg
Short Itemnumber: BULC350DSNG3C
https://www.stasto.ro/web/image/product.template/232496/image_1920?unique=f7e7f54

butterfly valve with manual gear box series BULC-G; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 350mm; length 78mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

13.061,10 lei 13061.1 RON 13.061,10 lei

Not Available For Sale

  • DN
  • Length

This combination does not exist.

Availability:
Contact Us

Share

DN 350 mm
Length 78 mm

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Assembly and Operating Instructions
2
Assembly instruction_Butterfly valve with manual gear box Series BULC-G_EN.pdf
Download
Data sheet_Butterfly valve with manual gear box Series BULC-G_EN.pdf
Download

ZIP
Datové listy
1
Datový list_uzavírací klapka s ruční převodovkou série BULC-G_CS.pdf
Download
Montážní a provozní návody
1
Montážní předpis_uzavírací klapka s ruční převodovkou série BULC-G_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjældventil med håndgear Serie BULC-G_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Absperrklappe mit Handgetriebe Serie BULC-G_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montageanleitung_Absperrklappe mit Handgetriebe Serie BULC-G_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Βαλβίδα πεταλούδας απομόνωσης με χειροκίνητο μειωτήρα ταχυτήτων Σειρά BULC-G_EL_GR.pdf
Download

ZIP
Assembly and Operating Instructions
1
Ficha técnica_Válvula de mariposa con reductor manual Serie BULC-G_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Sulkuventtiili käsivaihteella Sarja BULC-G_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne papillon avec réducteur manuel Série BULC-G_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Zaporni leptir ventil s ručnim reduktorom Serija BULC-G_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pillangószelep kézi forgatókerékkel sorozat BULC-G_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Üzembehelyezési útmutató_pillangószelep kézi forgatókerékkel sorozat BULC-G_HU.pdf
Download

ZIP
Assembly and Operating Instructions
1
Scheda tecnica_Serranda di intercettazione con riduttore manuale Serie BULC-G_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Avstengningsspjeldventil med håndgir Serie BULC-G_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Vlinderklep met handbediening Serie BULC-G_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_przepustnica z przekładnią Seria BULC-G_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu_przepustnica z przekładnią Seria BULC-G_PL.pdf
Download

ZIP
Assembly and Operating Instructions
1
Fișă de date_Supapă fluture cu cutie de viteze manuală serie BULC-G_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Zaporna loputa z ročnim polžastim pogonom serija BULC-G_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo_Zaporna loputa z ročnim polžastim pogonom serija BULC-G_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_leptir ventil sa ručnom menjačkom kutijom serije BULC-G_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu_leptir ventil sa ručnom menjačkom kutijom serije BULC-G_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Spjällventil med handväxel Serie BULC-G_SV.pdf
Download
BULC-350-DSN-B-3C x 1.0
Butterfly valve with bare shaft BULC-350-DSN-B-3C
Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+130°C; DN 350mm; Length 78mm; Pressure range 0…10bar; Nominal flange pressure PN10; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Add to Cart
GB02-12/3510-01
GB02-12/3510-01 x 1.0
GB02-12/3510-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F12; Diameter/Key 35/10mm
Add to Cart
