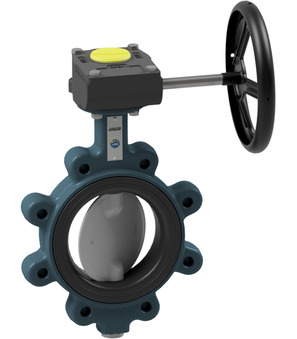

Butterfly valve with manual gear box BULC-250-DPE-G

Price.

5.236,70 lei
Butterfly valve with manual gear box Series BULG-G, BULC-G Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Butterfly valves
  5. Butterfly valve with manual gear box Series BULG-G, BULC-G
  6. BULC-250-DPE-G
Butterfly valve with manual gear box BULC-250-DPE-G
Butterfly valve with manual gear box BULC-200-DSE-G
Butterfly valve with manual gear box BULC-200-DSE-G
4.344,20 lei
4.344,20 lei
Butterfly valve with manual gear box BULC-250-DSE-G
Butterfly valve with manual gear box BULC-250-DSE-G
6.613,20 lei
6.613,20 lei

Butterfly valve with manual gear box BULC-250-DPE-G

Butterfly valve with manual gear box Series BULG-G, BULC-G; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 42.628 Kg
Short Itemnumber:BULC250DPEG
https://www.stasto.ro/web/image/product.template/88035/image_1920?unique=b9bbba7

Butterfly valve with manual gear box Series BULG-G, BULC-G; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 250mm; Length 68mm

5.236,70 lei 5236.7 RON 5.236,70 lei

Not Available For Sale

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 250 mm
Length 68 mm
pressure
Pressure range 0...10 bar
