BULC-200-DSV-G

BULC-200-DSV-G

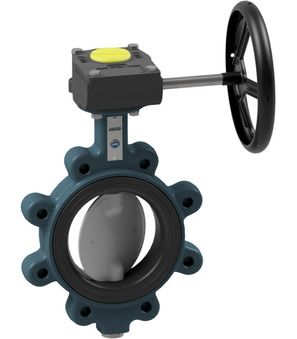

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 38.728 Kg
Short Itemnumber: BULC200DSVG
https://www.stasto.ro/web/image/product.template/159595/image_1920?unique=d9024cc

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10; medium temperature -10...+200°C; pressure range 0...10bar; DN 200mm; length 60mm

6.796,80 lei 6796.8 RON 6.796,80 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULC-200-DSV-B x 1.0
    Butterfly valve with bare shaft BULC-200-DSV-B
    Butterfly valve with bare shaft Series BUL-DSV-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 200mm; Length 60mm; Pressure range 0...10bar; Nominal flange pressure 10
    Add to Cart
    GB02-10/17-01
    GB02-10/17-01 x 1.0
    GB02-10/17-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
