BULC-200-DNE-G

Name: BULC-200-DNE-G
Brand: STASTO
SKU: BULC-200-DNE-G
Price: 4796.5 RON
Availability: InStock

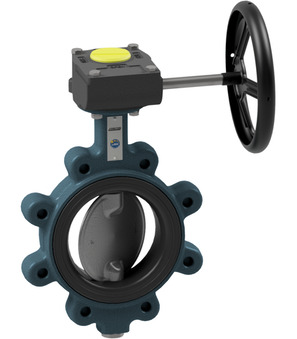

Butterfly valve with manual gear box Series BULC-G; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 200mm; Length 60mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 31.728 Kg
Short Itemnumber: BULC200DNEG

butterfly valve with manual gear box series BULC-G; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc aluminium-bronze; shaft AISI 430; liner EPDM; nominal flange pressure PN10; medium temperature -10...+130°C; pressure range 0...10bar; DN 200mm; length 60mm

4.796,50 lei 4796.5 RON 4.796,50 lei

excl. tax

DN
- 200 mm
Length
- 60 mm
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...10bar
DN	200 mm
Length	60 mm
Brand	STASTO

Specifications
Spare Parts

Pressure range	0...10bar
DN	200 mm
Length	60 mm
Brand	STASTO

BULC-200-DNE-B x 1.0 Pcs

BULC-200-DNE-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0…10bar; DN 200mm; Length 60mm
