BULA-350-DSX-G

BULA-350-DSX-G

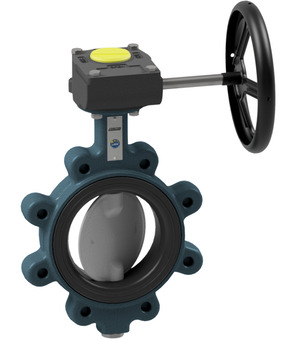

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-HT; Nominal flange pressure PN16; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 350mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 39.162 Kg
Short Itemnumber: BULA350DSXG
https://www.stasto.ro/web/image/product.template/161138/image_1920?unique=f96ddcc

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM-HT; nominal flange pressure PN16; medium temperature -10...+150°C; pressure range 0...16bar; DN 350mm; length 78mm

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULA-350-DSX-B x 1.0
    BULA-350-DSX-B
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-HT; Medium temperature -10...+150°C; DN 350mm; Length 78mm; Pressure range 0...16bar; Nominal flange pressure PN16
    Add to Cart
    GB02-12/3510-01
    GB02-12/3510-01 x 1.0
    GB02-12/3510-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F12; Diameter/Key 35/10mm
