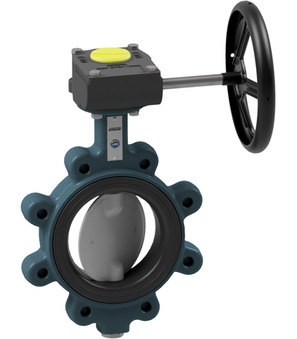

BULA-300-CSE-G

BULA-300-CSE-G

Butterfly valve with manual gear box Series BUL-G; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm

Intrastat No.: 84818085
Country of origin: Italy
Weight: 11.628 Kg
Short Itemnumber: BULA300CSEG
https://www.stasto.ro/web/image/product.template/162139/image_1920?unique=d9024cc

butterfly valve with manual gear box series BUL-G; lug type; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN16; medium temperature -10...+130°C; pressure range 0...16bar; DN 300mm; length 78mm

14.571,70 lei 14571.7 RON 14.571,70 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULA-300-CSE-B x 1.0
    BULA-300-CSE-B
    Butterfly valve with bare shaft Series BUL-B; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Pressure range 0…16bar; Nominal flange pressure PN16
    Add to Cart
    GB02-10/22-02
    GB02-10/22-02 x 1.0
    GB02-10/22-02
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
    Add to Cart
