BULA-200-DSE-G-A3C

BULA-200-DSE-G-A3C

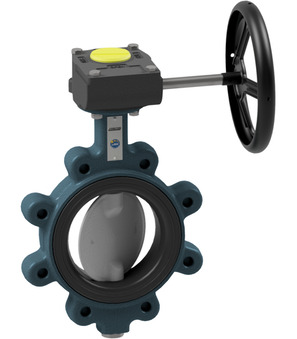

Butterfly valve with manual gear box; ATEX II 2 GD Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 24.528 Kg
Short Itemnumber: BULA200DSEGA3C
https://www.stasto.ro/web/image/product.template/159372/image_1920?unique=d9024cc

butterfly valve with manual gear box; ATEX II 2 GD Ex h X; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0...16bar; flange PN16; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

4.344,20 lei 4344.2 RON 4.344,20 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BULA-200-DSE-B-A3C x 1.0
BULA-200-DSE-B-A3C
Butterfly valve with bare shaft Series BULA-DSE-B-A3C; ATEX Ex II 2GD c TX; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Add to Cart
GB02-10/17-01
GB02-10/17-01 x 1.0
GB02-10/17-01
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
