BAUA-015-CITV-D0B-ABS51-C001-22-C002-31-6
BAUA-015-CITV-D0B

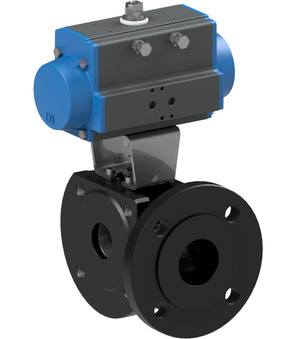

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; DN ball 10mm; Length 40mm; Actuator PAD052; Ball T
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
Country of origin: Italy
Weight: 3.183 Kg
Short Itemnumber: BAUA015CITVD0BABS51C00122C002316
BAUA-015-CITV-D0B
flanged ball valve with pneumatic actuator series BAMA, BAUA; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...16bar; nominal diameter 15mm; DN ball 10mm; length 40mm; actuator PAD052; ball T
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
