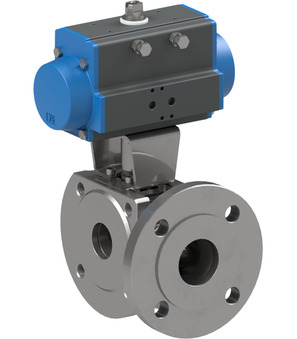

Flanged ball valve with pneumatic actuator BAMA-040-SSTV-D0

Flanged ball valve with pneumatic actuator BAMA-040-SSTV-D0

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; DN ball 32mm; Length 71mm; Actuator PAD063; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.68 Kg
Short Itemnumber: BAMA040SSTVD0
https://www.stasto.ro/web/image/product.template/87123/image_1920?unique=e5e4a60

Flanged ball valve with pneumatic actuator Series BAMA, BAUA; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; DN ball 32mm; Length 71mm; Actuator PAD063; Ball L

7.782,60 lei 7782.6 RON 7.782,60 lei

Not Available For Sale

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • DN ball
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 40 mm
Length 71 mm
DN ball 32 mm
Designs
Ball L
characteristics
Actuator PAD063

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BAMA, BAUA_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAMA040SSTVD0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BAMA, BAUA_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med pneumatisk drejedrev Serie BAMA, BAUA_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BAMA, BAUA_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAMA, BAUA_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BAMA, BAUA_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAMA, BAUA_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BAMA, BAUA_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAMA, BAUA_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BAMA, BAUA_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BAMA, BAUA_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BAMA, BAUA_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BAMA, BAUA_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BAMA, BAUA_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BAMA, BAUA_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BAMA, BAUA_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BAMA, BAUA_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med pneumatiskt vriddon Serie BAMA, BAUA_SV.pdf
Download
Flanged ball valve 776007-40
776007-40 x 1.0
Flanged ball valve 776007-40
Flanged ball valve Series 776007, 776010; 3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; DN ball 32mm; Length 71mm; Ball L
Add to Cart
Pneumatic actuator PAD063
PAD063 x 1.0
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
