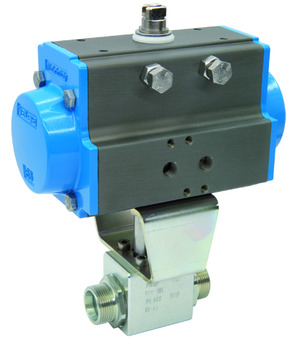

Ball valve with pneumatic actuator BAH7-28L-UCPN-S0

Ball valve with pneumatic actuator BAH7-28L-UCPN-S0

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 28L/M36x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 108mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.62 Kg
Short Itemnumber: BAH728LUCPNS0
https://www.stasto.ro/web/image/product.template/87952/image_1920?unique=6fca8dd

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 28L/M36x2; Nominal diameter 24mm; Pressure range 0-350bar; Length 108mm; Actuator PAS1005

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Connection 28L/M36x2
DN 24 mm
Length 108 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAS1005

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAH7_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAH728LUCPNS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAH7_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH7_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH7_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH7_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH7_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH7_SRLATIN.pdf
Download
BKH-28L-25 11231-B0FA x 1.0
BKH-28L-25 11231-B0FA
Ball valve, PN 350, tube 28L/M36x2 body galvanised steel, seal POM/NBR ISO mounting holes for actuator mounting F05
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
