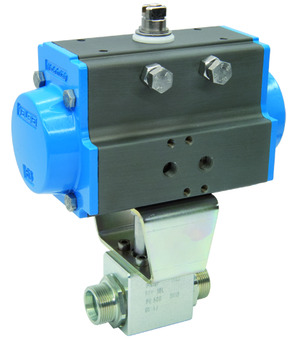

Ball valve with pneumatic actuator BAH7-16S-UCPN-S0

Ball valve with pneumatic actuator BAH7-16S-UCPN-S0

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 16S/M24x1,5; Nominal diameter 13mm; Pressure range 0-500bar; Length 87mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 5.76 Kg
Short Itemnumber: BAH716SUCPNS0
https://www.stasto.ro/web/image/product.template/87936/image_1920?unique=bcfc56d

Ball valve with pneumatic actuator Series BAH7; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Connection 16S/M24x1,5; Nominal diameter 13mm; Pressure range 0-500bar; Length 87mm; Actuator PAS0855

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • Connection
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 16S/M24x1,5
Pressure range 0...500 bar
DN 13 mm
Length 87 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Connection 16S/M24x1,5
Pressure range 0...500 bar
DN 13 mm
Length 87 mm
Brand STASTO

BAH7-16S-UCPN-S0

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
BKH-16S-13 11231-B0FA x 1.0 Pcs
BKH-16S-13 11231-B0FA
Ball valve, PN 500, tube 16S/M24x1,5 body steel zinc-plated, seal POM/NBR ISO holes for actuator mounting F03
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
04805007001 x 1.0 Pcs
04805007001
Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
A4/457/04 x 1.0 Pcs
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
