Ball valve with pneumatic actuator BAH1-005-SSKV-S0
Ball valve with pneumatic actuator BAH1-004-SSKV-S0
Ball valve with pneumatic actuator BAH1-004-SSKV-S0
4.637,40 lei
4.637,40 lei
Ball valve with pneumatic actuator BAH1-006-SSKV-S0
Ball valve with pneumatic actuator BAH1-006-SSKV-S0
999.999,00 lei
999.999,00 lei

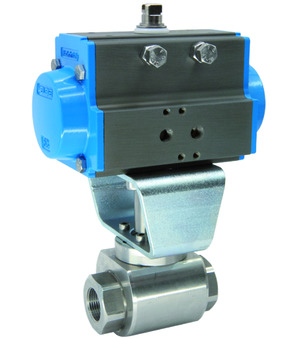

Ball valve with pneumatic actuator BAH1-005-SSKV-S0

Ball valve with pneumatic actuator Series BAH1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0-400bar; Length 96mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Germany
Weight: 9.64 Kg
Short Itemnumber:BAH1005SSKVS0
https://www.stasto.ro/web/image/product.template/87917/image_1920?unique=bbc91d7

Ball valve with pneumatic actuator Series BAH1; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 3/4"; Nominal diameter 20mm; Pressure range 0-400bar; Length 96mm; Actuator PAS1005

6.516,30 lei 6516.3 RON 6.516,30 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 20 mm
Length 96 mm
pressure
Pressure range 0...400 bar
characteristics
Actuator PAS1005

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAH1-SSKV-D0_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAH1005SSKVS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAH1-SSKV-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BAH1-SSKV-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH1-SSKV-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAH1-SSKV-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BAH1-SSKV-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAH1-SSKV-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BAH1-SSKV-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAH1-SSKV-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH1-SSKV-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BAH1-SSKV-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BAH1-SSKV-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BAH1-SSKV-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH1-SSKV-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BAH1-SSKV-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH1-SSKV-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH1-SSKV-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BAH1-SSKV-D0_SV.pdf
Download
RKH-G3/4-204465-DFA x 1.0
RKH-G3/4-204465-DFA
Ball valve with cover for actuator F04-SW14 PN 400, thread i/i, 3/4", DN20, body 1.4571 seal PEEK/FKM, for hydraulic fluids
Add to Cart
Pneumatic actuator PAS1005
PAS1005 x 1.0
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
Add to Cart
ATSV0704 x 1.0
ATSV0704
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
