Ball valve with pneumatic actuator BAH1-004-UCPN-S0
Ball valve with pneumatic actuator BA080-38-T0-ABS53-C001-03-C002-31-LV-2
Ball valve with pneumatic actuator BA080-38-T0-ABS53-C001-03-C002-31-LV-2
2.104,80 lei
2.104,80 lei
Ball valve with pneumatic actuator BA818-34-S0
Ball valve with pneumatic actuator BA818-34-S0
3.273,70 lei
3.273,70 lei

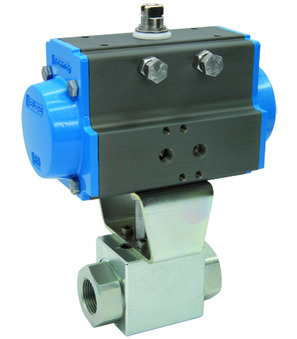

Ball valve with pneumatic actuator BAH1-004-UCPN-S0

Ball valve with pneumatic actuator Series BAH1; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-500bar; Length 85mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.72 Kg
Short Itemnumber:BAH1004UCPNS0
https://www.stasto.ro/web/image/product.template/87915/image_1920?unique=bbc91d7

Ball valve with pneumatic actuator Series BAH1; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-500bar; Length 85mm; Actuator PAS0855

2.533,70 lei 2533.7 RON 2.533,70 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 13 mm
Length 85 mm
pressure
Pressure range 0...500 bar
characteristics
Actuator PAS0855

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAH1_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAH1004UCPNS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAH1_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAH1_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAH1_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAH1_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAH1_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAH1_SRLATIN.pdf
Download
BKH-G1/2-13 11231-B0FA x 1.0
BKH-G1/2-13 11231-B0FA
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-500bar; Length 85mm; Drilled for mounting an actuator F03/SW9
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
04805007001 x 1.0
04805007001
Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm
Add to Cart
A4/457/04 x 1.0
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
