BAC5-010-CITV-D0-ABS51-C001-03-C002-31-LV-2
BAC5-010-CITV-D0

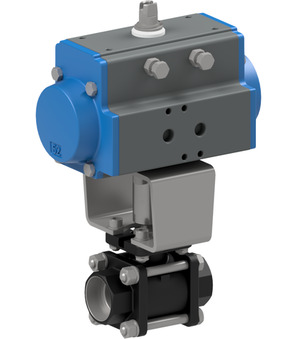

Ball valve with pneumatic actuator Series BAC5; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
Country of origin: Italy
Weight: 6.58 Kg
Short Itemnumber: BAC5010CITVD0ABS51C00103C00231LV2
BAC5-010-CITV-D0
ball valve with pneumatic actuator series BAC5; socket weld ends; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAD085
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC
