BAC5-003-CITV-D0B-ABS51-C001-22-C002-31-6
BAC5-003-CITV-D0B

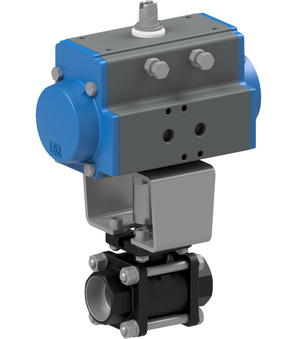

Ball valve with pneumatic actuator Series BAC5; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 10mm; Pressure range 0-64bar; Length 57mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
Country of origin: Italy
Weight: 1.813 Kg
Short Itemnumber: BAC5003CITVD0BABS51C00122C002316
BAC5-003-CITV-D0B
ball valve with pneumatic actuator series BAC5; socket weld ends; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 10mm; pressure range 0-64bar; length 57mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
