BAC1-005-CITV-D0-EB0X05

Price.

3.398,10 lei
Ball valve with pneumatic actuator Series BAC1 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAC1
  6. BAC1-005-CITV-D0-EB0X05
BAC1-005-CITV-D0-EB0X05

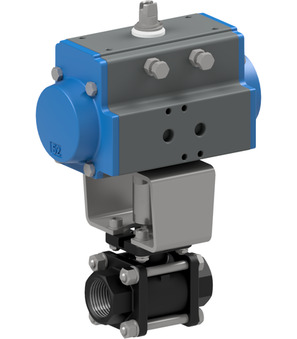

Ball valve with pneumatic actuator BAC1-005-CITV-D0
Ball valve with pneumatic actuator BAC1-005-CITV-D0
1.903,30 lei
1.903,30 lei
BAC1-005-CITV-D0-ABS51-C001-03-C002-31-6
BAC1-005-CITV-D0-ABS51-C001-03-C002-31-6
2.653,50 lei
2.653,50 lei

BAC1-005-CITV-D0-EB0X05

BAC1-005-CITV-D0
Ball valve with pneumatic actuator Series BAC1; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAD052
EB0X05
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831391 - ATEX; Contact material Silber-Nickel; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.688 Kg
Short Itemnumber:BAC1005CITVD0EB0X05
https://www.stasto.ro/web/image/product.template/232443/image_1920?unique=94b97ec

BAC1-005-CITV-D0
ball valve with pneumatic actuator series BAC1; female thread; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAD052
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

3.398,10 lei 3398.1 RON 3.398,10 lei

Not Available For Sale

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Female thread RP 3/4"
DN 20 mm
Length 76 mm
Designs
Switch type Crouzet 831391 - ATEX
design
Design ATEX
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...40 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Actuator PAD052
