BAB1-009-BLTV-D0-EB0X01

Price.

3.245,10 lei
Ball valve with pneumatic actuator Series BAB1 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAB1
  6. BAB1-009-BLTV-D0-EB0X01
BAB1-009-BLTV-D0-EB0X01

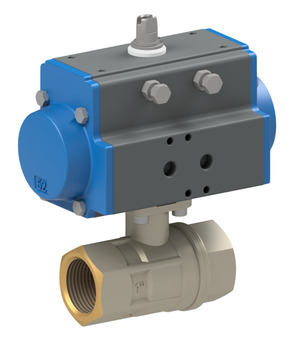

Ball valve with pneumatic actuator BAB1-009-BLTV-D0
Ball valve with pneumatic actuator BAB1-009-BLTV-D0
2.725,40 lei
2.725,40 lei
BAB1-009-BLTV-D0-ABS51-C001-22-C002-31-6
BAB1-009-BLTV-D0-ABS51-C001-22-C002-31-6
3.475,60 lei
3.475,60 lei

BAB1-009-BLTV-D0-EB0X01

BAB1-009-BLTV-D0
Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAD052
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.458 Kg
Short Itemnumber:BAB1009BLTVD0EB0X01
https://www.stasto.ro/web/image/product.template/210232/image_1920?unique=94b97ec

BAB1-009-BLTV-D0
ball valve with pneumatic actuator series BAB1; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator PAD052
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

3.245,10 lei 3245.1 RON 3.245,10 lei

Not Available For Sale

  • Diameter
  • Male thread
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Voltage type
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Female thread RP 2"
DN 50 mm
Length 138 mm
Designs
Switch type Crouzet 831613
Electrical key figures
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...40 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Actuator PAD052
