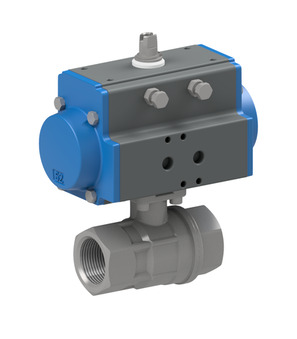

Ball valve with pneumatic actuator BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-6

Ball valve with pneumatic actuator BAB1-006-SSTV-D0B-ABS51-C001-22-C002-31-6

BAB1-006-SSTV-D0B
Ball valve with pneumatic actuator Series BAB1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-64bar; Length 90mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.203 Kg
Short Itemnumber: BAB1006SSTVD0BABS51C00122C002316
https://www.stasto.ro/web/image/product.template/197167/image_1920?unique=afd6f79

BAB1-006-SSTV-D0B
ball valve with pneumatic actuator series BAB1; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-64bar; length 90mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

2.454,60 lei 2454.6 RON 2.454,60 lei

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 1"
DN 25 mm
Length 90 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread RP 1"
DN 25 mm
Length 90 mm
Voltage 230V/50-60Hz
Design Standard
