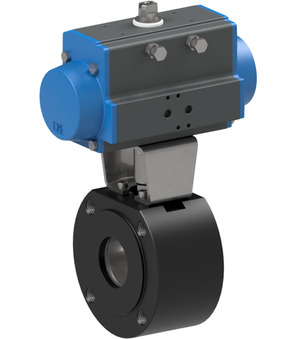

BA872-100-S0-01

Name: BA872-100-S0-01
Brand: STASTO
SKU: BA872-100-S0-01
Price: 13387.5 RON
Availability: InStock

flanged ball valve with pneumatic actuator; flange ANSI150; body steel; ball AISI 304; seals PTFE-graphite reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range 0...15bar; nominal diameter 100mm; length 152mm; actuator PAS1405-PS; PTFE-coated; pinion stainless steel; actuator 90° offset structure

Intrastat No.: 84818081
Country of origin: Italy
Weight: 44.41 Kg
Short Itemnumber: BA872100S001

13.387,50 lei 13387.5 RON 13.387,50 lei

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA872-100-L x 1.0

BA872-100-L

flanged ball valve series BA872; flange ANSI150; flange thread metrical; full bore; body steel; ball AISI 304; seals PTFE-graphite reinforced/FKM; pressure range 0...15bar; medium temperature -20...+198°C; nominal diameter 100mm; length 152mm

Add to Cart

PAS1405-PS x 1.0

Pneumatic actuator PAS1405-PS

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; PTFE-coated; Pinion stainless steel AISI304; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm

Add to Cart

RI3005 x 1.0
