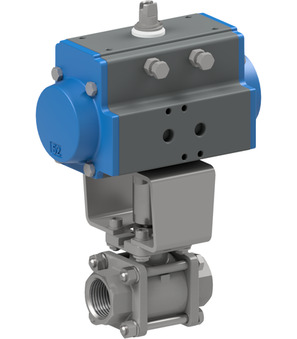

Ball valve with pneumatic actuator BA859-20-D0

Ball valve with pneumatic actuator BA859-20-D0

Ball valve with pneumatic actuator Series BA859-D0; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.21 Kg
Short Itemnumber: BA85920D0
https://www.stasto.ro/web/image/product.template/217601/image_1920?unique=a753443

ball valve with pneumatic actuator series BA859-D0; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD075

4.387,00 lei 4387.0 RON 4.387,00 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
All specifications (5)
Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
Brand STASTO
BA859-20-L
BA859-20-L x 1.0 Pcs
BA859-20-L
Ball valve made of stainless steel Series BA859; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
