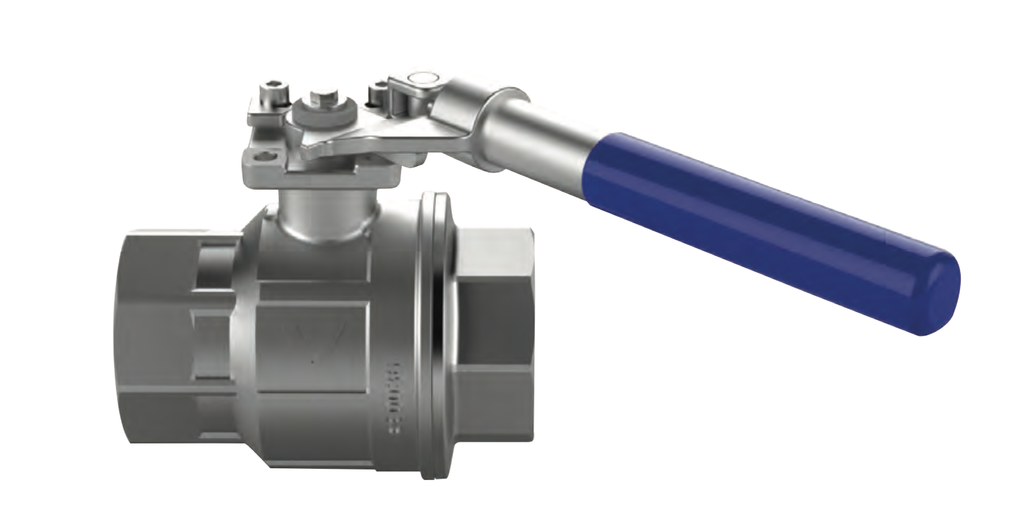

BA826-10N-L-A-01

BA826-10N-L-A-01

Ball valve made of stainless steel; With spring return; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/MFQ; Medium temperature -40...+180°C; Connection 1"NPT; Nominal diameter 25mm; Pressure range 0...64bar; Length 90mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.128 Kg
Short Itemnumber: BA82610NLA01
https://www.stasto.ro/web/image/product.template/192175/image_1920?unique=f96ddcc

ball valve made of stainless steel; with spring return; ATEX II 2 G/D; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE/MFQ; medium temperature -40...+180°C; connection 1"NPT; nominal diameter 25mm; pressure range 0...64bar; length 90mm

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Connection
  • DN
  • Length
  • Design
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
Connection G 1"
DN 25 mm
Length 90 mm
design
Design ATEX
pressure
Pressure range 0...64 bar
BA826-10N-B-A
BA826-10N-B-A x 1.0
BA826-10N-B-A
Ball valve made of stainless steel; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/MFQ; Medium temperature -40...+180°C; Connection 1"NPT; Nominal diameter 25mm; Pressure range 0...64bar; Length 90mm
