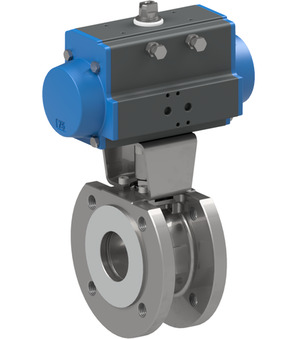

Flanged ball valve with pneumatic actuator BA811-40-D0-A-3C

Name: Flanged ball valve with pneumatic actuator BA811-40-D0-A-3C
Brand: STASTO
SKU: BA811-40-D0-A-3C
Price: 999999.0 RON
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA811-D0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16/40; Body, Ball 1.4401; Seals PEEK Thickness Reduced; antifriction ring PEEK; Stem Reinforced Stainless steel 17-4-PH; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 64mm; Actuator PAD075; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA81140D0A3C

flanged ball valve with pneumatic actuator series BA811-D0-A; ATEX II 2 G/D; fire-safe; TA-Luft; flange PN16/40; body, ball AISI 316; seals PEEK thickness reduced; antifriction ring PEEK; stem reinforced stainless steel 17-4-PH; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+180°C; pressure range 0...16bar; nominal diameter 40mm; length 64mm; actuator PAD075; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness

999.999,00 lei 999999.0 RON 999.999,00 lei

excl. tax

DN
- 80 mm
Length
- 122 mm
Design
- ATEX
Pressure range
- 0...16 bar
Actuator
- PAD085
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16 bar
DN	80 mm
Length	122 mm
Design	ATEX

All specifications (5)

Specifications
Spare Parts

Pressure range	0...16 bar
DN	80 mm
Length	122 mm
Design	ATEX
Brand	STASTO

BA811-40-L-A-3C x 1.0 Pcs

Flanged ball valve BA811-40-L-A-3C

Flanged ball valve Series BA811-L-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PEEK Thickness Reduced; antifriction ring PEEK; Stem Reinforced Stainless steel 17-4-PH; Medium temperature -20...+180°C; Nominal diameter 40mm; Pressure range 0...16bar; Flange PN16/40; Length 64mm; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness
