BA738-12N-S0-AH3N

BA738-12N-S0-AH3N

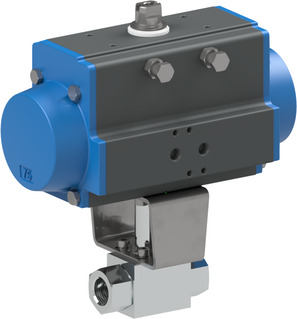

Ball valve with pneumatic actuator; Female thread; Body 1.4571; Ball Nitronic-50; Seals PEEK/FKM-Special version; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+85°C; Connection 1/2"NPT; Nominal diameter 13mm; Pressure range 0...500bar; Length 86mm; Actuator PAS1155; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1 For material And Additional High pressure gas test; ATEX Certificate

Intrastat No.: 84818081
Country of origin: Germany
Short Itemnumber: BA73812NS0AH3N
https://www.stasto.ro/web/image/product.template/217033/image_1920?unique=9609ba9

ball valve with pneumatic actuator; female thread; body AISI 316Ti; ball Nitronic-50; seals PEEK/FKM-special version; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+85°C; connection 1/2"NPT; nominal diameter 13mm; pressure range 0...500bar; length 86mm; actuator PAS1155; free of oil and grease for hydrogen; incl. inspection certificate EN-10204-3.1 for material and additional high pressure gas test; ATEX Certificate

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA738-12N-B-AH3N x 1.0
BA738-12N-B-AH3N
High pressure ball valve; Female thread; Body 1.4571; Ball Nitronic-50; Seals PEEK/FKM-Special version; Medium temperature -40...+85°C; Connection 1/2"NPT; Nominal diameter 13mm; Pressure range 0...500bar; Length 86mm; Flange ISO5211 F03; Square 9mm; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1 For material And Additional High pressure gas test; ATEX Certificate
Add to Cart
Pneumatic actuator PAS1155
PAS1155 x 1.0
Pneumatic actuator PAS1155
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
Add to Cart
ATSV0703 x 1.0
ATSV0703
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm
Add to Cart
IV/00019/09 x 1.0
IV/00019/09
Bolt; 1.4305; Diameter 28mm; Height of the bolt 53mm; Male square 22mm; Height of the male square 23mm; Female square 9mm; Height of the female square 9mm
