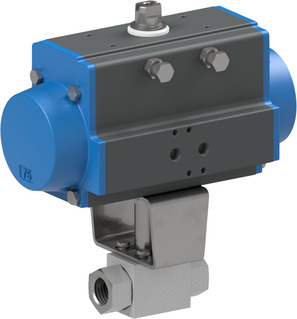

BA686-12N-T0-A03G

BA686-12N-T0-A03G

Ball valve with pneumatic actuator Series BA686-T0-A03G; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK(ATEX)/FKM; With erosion protection ring For gases; Free of oil and grease; Medium temperature -20...+200°C; Connection 1/2"NPT; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Single acting actuator; Control pressure 5,5...8bar; Actuator PAS1005-B; Safety position NO; Incl. 3.1-Inspection document According to DIN EN 12266-1 P10/P11/P12; For pressure, function and tightness; Incl. Inspection certificate EN-10204-3.1; For body material; Incl. ATEX-certificate

Intrastat No.: 84818081
Country of origin: Germany
Weight: 8.233 Kg
Short Itemnumber: BA68612NT0A03G
https://www.stasto.ro/web/image/product.template/213402/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA686-T0-A03G; female thread; body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals PEEK(ATEX)/FKM; with erosion protection ring for gases; free of oil and grease; medium temperature -20...+200°C; connection 1/2"NPT; nominal diameter 13mm; pressure range 0...500bar; length 83mm; single acting actuator; control pressure 5,5...8bar; actuator PAS1005-B; safety position NO; incl. 3.1-inspection document according to DIN EN 12266-1 P10/P11/P12; for pressure, function and tightness; incl. inspection certificate EN-10204-3.1; for body material; incl. ATEX-certificate

5.362,10 lei 5362.1 RON 5.362,10 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA686-12N-B-A03G x 1.0
    High pressure ball valve BA686-12N-B-A03G
    High pressure ball valve Series BA686-B-A03G; Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals PEEK(ATEX)/FKM; With erosion protection ring; For gases; Medium temperature -20...+200°C; 1/2"NPT; Nominal diameter 13mm; Pressure range 0…500bar; Length 83mm; Flange ISO5211 F03; Square 9mm; Free of oil and grease; Incl. 3.1-Inspection document According to DIN EN 12266-1 P10/P11/P12; For pressure, function and tightness; Incl. Inspection certificate EN-10204-3.1; For body material; Incl. ATEX-certificate
    Add to Cart
    PAS1005-B x 1.0
    PAS1005-B
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
    Add to Cart
    ATSV0703 x 1.0
    ATSV0703
    Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm
    Add to Cart
    IV/00088/13 x 1.0
    IV/00088/13
    Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm
