Ball valve with pneumatic actuator BA668-12-D0

Price.

999.999,00 lei
Ball valve with pneumatic actuator Series BA668 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves for high pressure - pneumatically operated
  5. Ball valve with pneumatic actuator Series BA668
  6. BA668-12-D0

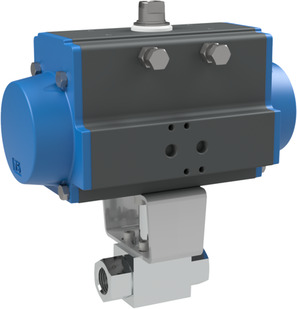

Ball valve with pneumatic actuator BA668-12-D0
Ball valve with pneumatic actuator BA668-38-D0
Ball valve with pneumatic actuator BA668-38-D0
999.999,00 lei
999.999,00 lei
Ball valve with pneumatic actuator BA668-34-D0
Ball valve with pneumatic actuator BA668-34-D0
999.999,00 lei
999.999,00 lei

Ball valve with pneumatic actuator BA668-12-D0

Ball valve with pneumatic actuator Series BA668; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM; With erosion protection ring; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For gases; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Germany
Weight: 3.66 Kg
Short Itemnumber:BA66812D0
https://www.stasto.ro/web/image/product.template/139660/image_1920?unique=1fc88cc

ball valve with pneumatic actuator series BA668; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/FKM; with erosion protection ring; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for gases; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm; actuator PAD075

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 13 mm
Length 83 mm
pressure
Pressure range 0...500 bar
characteristics
Actuator PAD075

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA668_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA66812D0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA668_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA668_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA668_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA668_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA668_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA668_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA668_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA668_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA668_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA668_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA668_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA668_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA668_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA668_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA668_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA668_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA668_SV.pdf
Download
BA668-12-B x 1.0
High pressure ball valve BA668-12-B
High pressure ball valve Series BA668; Female thread; Drilled for mounting an actuator; Body, Ball 1.4408; Seals POM/FKM; With erosion protection ring; For gases; Medium temperature -20...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Flange ISO5211 F03; Square 9mm
Add to Cart
Pneumatic actuator PAD075
PAD075 x 1.0
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
Add to Cart
04806007007 x 1.0
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
Add to Cart
A4/223/96 x 1.0
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
