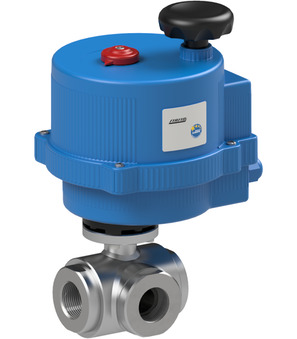

Ball valve with electrical actuator BA542-10-0L-0

Name: Ball valve with electrical actuator BA542-10-0L-0
Brand: STASTO
SKU: BA542-10-0L-0
Price: 999999.0 RON
Availability: InStock

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature -20...+60°; free of oil and grease for oxygen; G 1"; DN 25mm; pressure range 0…64bar; length 102mm; operating time 8s; voltage 24VAC/DC; ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.6 Kg
Short Itemnumber: BA542100L0

999.999,00 lei 999999.0 RON 999.999,00 lei

Female thread
- G 1"
DN
- 25 mm
Length
- 102 mm
Ball
- L
Voltage
- 24VAC/DC
Pressure range
- 0...64 bar
Actuator
- VB0300E8Q14
Operating time
- 8 s

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 1"
DN	25 mm
Length	102 mm
Designs
Ball	L
Electrical key figures
Voltage	24VAC/DC
pressure
Pressure range	0...64 bar
characteristics
Actuator	VB0300E8Q14
Operating time	8 s

BA542-10-B-A0 x 1.0

Ball valve made of stainless steel BA542-10-B-A0

Ball valve made of stainless steel Series BA541-A0, BA542-A0; ATEX II 2 G/D c T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+60°C; Free of oil and grease for oxygen; G 1"; Nominal diameter 25mm; Pressure range 0…64bar; Length 102mm; Ball L; Flange ISO5211 F05; Square 14mm

Add to Cart

VB030-0E8-Q14 x 1.0

Electrical actuator VB030-0E8-Q14

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 14mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart
