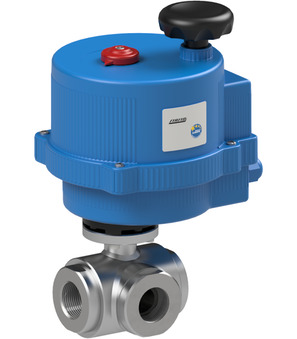

Ball valve with electrical actuator BA541-14-0L

Ball valve with electrical actuator BA541-14-0L

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 1/4"; DN 12mm; Pressure range 0…100bar; Length 72mm; Operating time 10s; Voltage 24VAC/DC; Ball T

Kugelhahn mit Elektroantrieb Serie BA541, BA542
Kugelhahn mit Elektroantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.383 Kg
Short Itemnumber: BA541140L
https://www.stasto.ro/web/image/product.template/137103/image_1920?unique=d79ab69

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 1/4"; DN 12mm; pressure range 0…100bar; length 72mm; operating time 10s; voltage 24VAC/DC; ball T

3.282,90 lei 3282.9 RON 3.282,90 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...100 bar
DN 12 mm
Length 72 mm
Operating time 10 s
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...100 bar
DN 12 mm
Length 72 mm
Operating time 10 s
Voltage 24VAC/DC
Ball T
Female thread G 1/4"

BA541-14-0L

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel BA541-14-B
BA541-14-B x 1.0 Pcs
Ball valve made of stainless steel BA541-14-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/4"; Nominal diameter 12mm; Pressure range 0...100bar; Length 72mm; Ball T; Flange ISO5211 F03; Square 9mm
Electrical actuator VB015-L-24
VB015-L-24 x 1.0 Pcs
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
