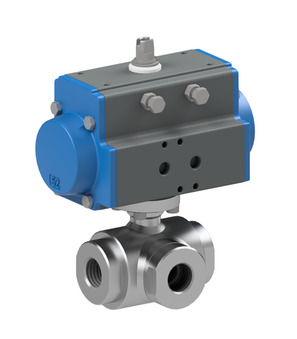

Ball valve with pneumatic rotary actuator BA541-114-S0 (copy)

Name: Ball valve with pneumatic rotary actuator BA541-114-S0 (copy)
Brand: STASTO
SKU: BA541-114-S0-A
Price: 6817.2 RON
Availability: InStock

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.05 Kg
Short Itemnumber: BA541114S0A

6.817,20 lei 6817.2 RON 6.817,20 lei

Female thread
- G 1 1/4"
DN
- 32 mm
Length
- 118 mm
Ball
- T
Design
- ATEX
Pressure range
- 0...64 bar
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 1 1/4"
DN	32 mm
Length	118 mm
Designs
Ball	T
design
Design	ATEX
pressure
Pressure range	0...64 bar
characteristics
Actuator	PAS1005

BA541-114-B-A x 1.0

Ball valve made of stainless steel BA541-114-B-A

ball valve made of stainless steel series BA541, BA542; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; ball T; flange ISO5211 F07; square 17mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart
